Fits: Universal

Pacbrake's HP325 Series Onboard Air Kits are a complete onboard system (Air Compressor & Air Tank) that builds and stores compressed air on the go allowing for quicker product activation, filling inflatable toys or tires, or whatever else you may need air for on the road ahead!

Features:

• 12VDC HP325 Series Air Compressor - Chrome finish

• 1/2 Gallon Carbon Steel Air Tank - Black powder coated finish

• Voltage: 12 VDC

• Duty Cycle: 33% (20 minutes @ 100 psi)

• Horsepower: 1/4 HP

• Tank / Compressor Max Working Pressure: 150 psi [1034 kPa]

• NPT Ports: 2 x 1/4" (-4)

• Tank Burst Pressure: 600 psi [4137 kPa]

• Tank Working Temp: -40°F to 248°F [-40°C to 120°C]

Includes:

• Installation hardware, air lines, electrical connectors & fittings, pressure switch(es), relay(s), and pre-built wiring harnesses

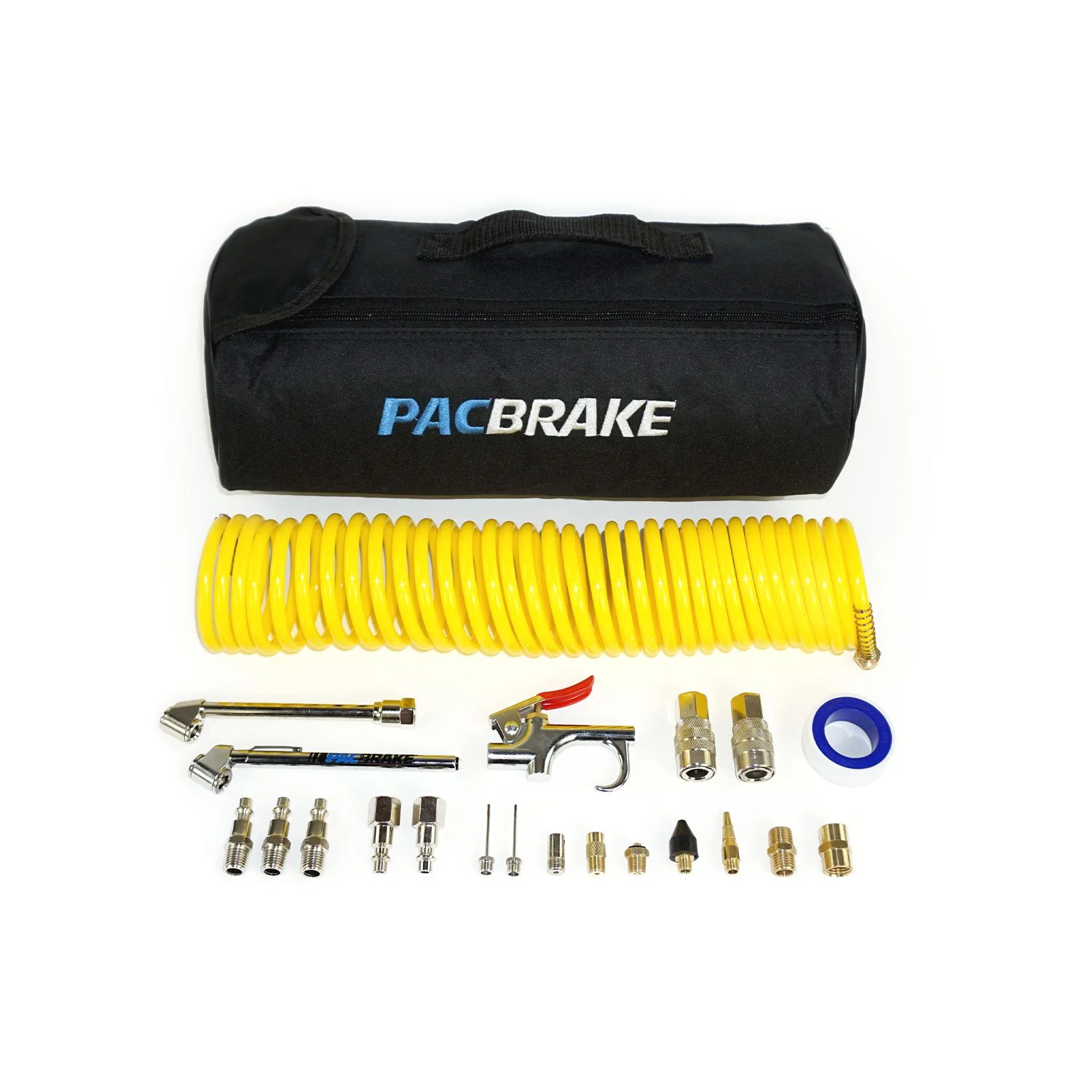

• 25' Curly Hose & Accessories Kit

• 8.7 inch x 4 inch x 6.2 inch (LxWxH) / [221mm x 102mm x 158mm]
• 5.5 lbs [2.49kg]

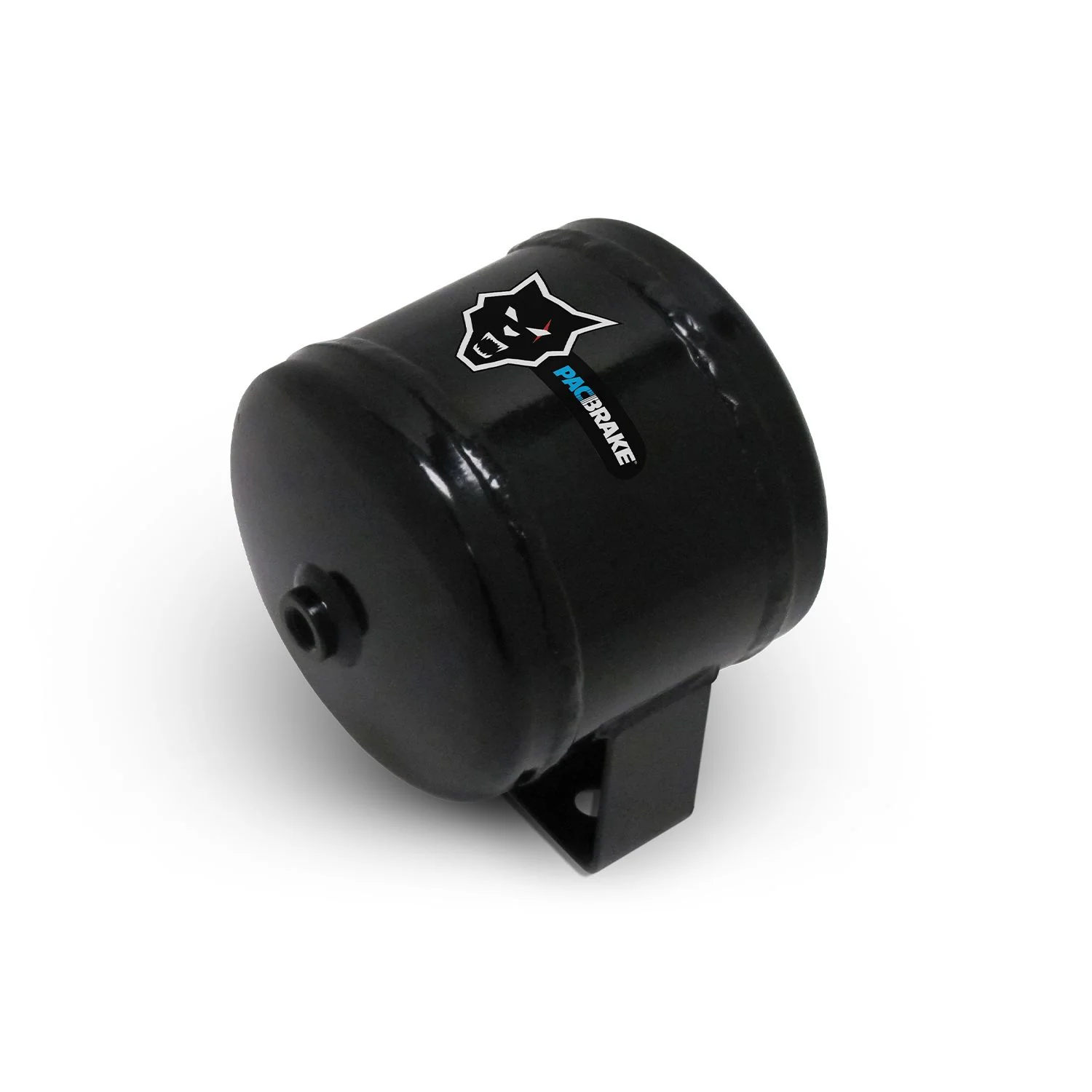

1/2 Gallon Tank Specifications:

• 6.3 inch x 5.25 inch x 6.75 inch (LxWxH) / [160mm x 134mm x 172mm]
• 5.9 inch (Diameter) / [150mm]
• 3.8 lbs [1.72kg]

Install Instructions
